8 1/2" FG515G Tricone Drill Bit , Water Well Drill Bits API-7-1 Standard

Product Categories

FLRT Bit

Contact Now

8 1/2" FG515G Tricone Drill Bit , Water Well Drill Bits API-7-1 Standard

Name: 8 12quot FG515G Tricone Drill Bit Water Well Drill Bits API71 Standard
Brand: FLRT
Price: 2000 USD

Buy cheap 8 1/2" FG515G Tricone Drill Bit , Water Well Drill Bits API-7-1 Standard product

Brand Name : FLRT

Model Number : 8 1/2 FG515G

Certification : API-7-1, ISO 9001:2008

Place of Origin : China

MOQ : 10pcs

Price : 2000 USD/pc

Supply Ability : 300pcs per quarter

Delivery Time : 5~45 workdays

Packaging Details : plywood box / iron box

name : tricone rock roller bits

Cutting Material : TCI

Standard : API-7-1, ISO 9001:2008

Series : FG

IADC : 515

Supplementary Features : G : Reinforced Gauge Protection

Contact Now

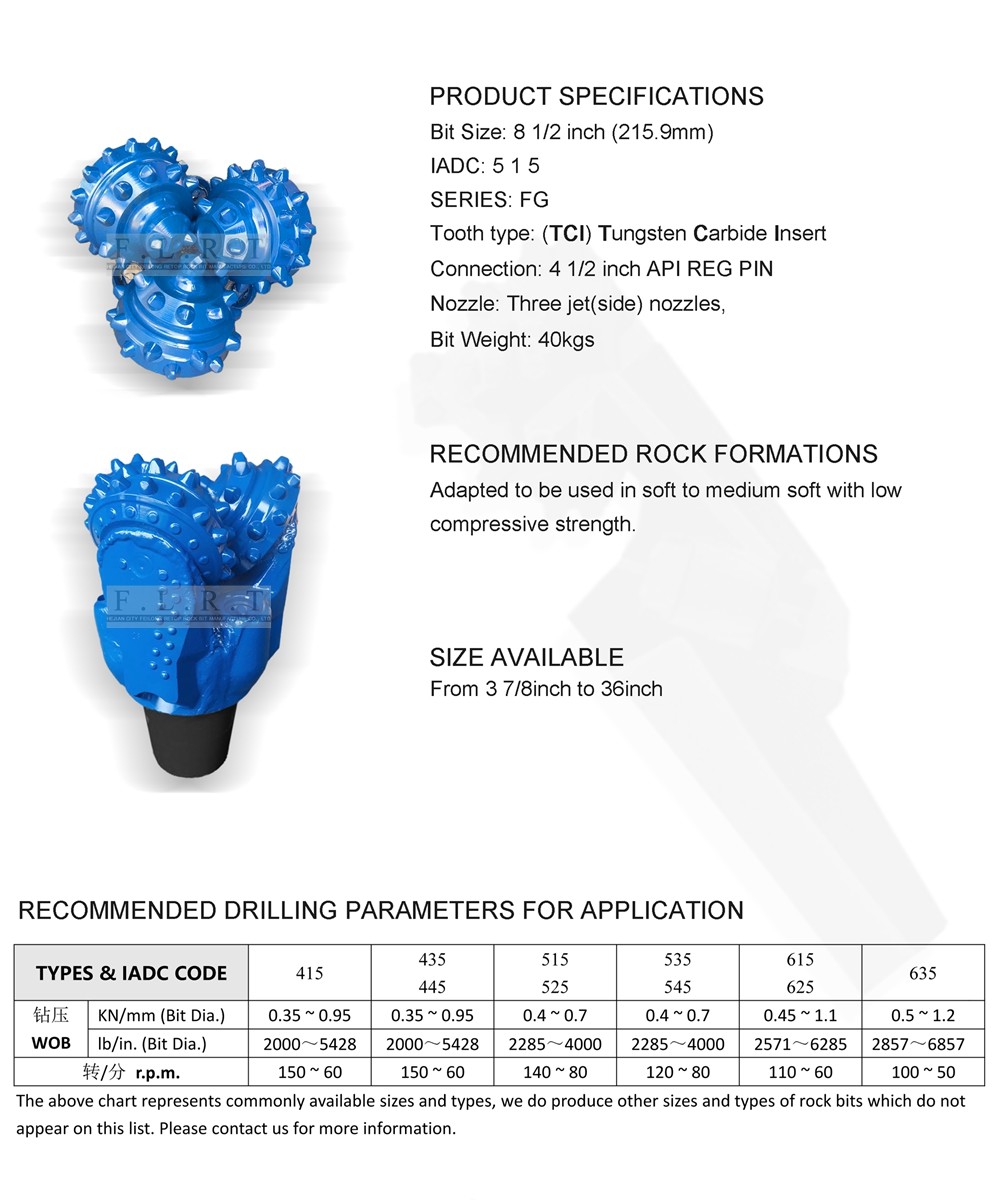

8 1/2" FG515G , TCI Bit Sealed Roller Bearing , Tricone Roller Bit

PRODUCT SPECIFICATIONS

Bit Size : 8 1/2 inch (215.9mm)

IADC : 5 1 5

SERIES : FG

Tooth type : ( TCI ) Tungsten Carbide Insert

Connection : 4 1/2 inch API REG PIN

Nozzle : three jet (side) nozzles

Bit Weight : 40kgs

RECOMMENDED ROCK FORMATIONS

Adapted be used in soft to medium soft with low compressive strength.

SIZE AVAILABLE

From 3 7/8inch to 36inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code		415	435 445	515 525	535 545	615 625	635
WOB	KN/mm(Bit Dia.)	0.35~0.95	0.35~0.95	0.4~0.7	0.4~0.7	0.45~1.1	0.5~1.2
WOB	Lb/in. (Bit Dia.)	2000~5428	2000~5428	2285~4000	2285~4000	2571~6285	2857~6857
Rotation Speed (Rpm)		150~60	150~60	140~80	120~80	110~60	100~50

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
