6 1/8" FA537G , TCI Tricone Bit , Rock Bit , Rubber Sealed Journal Bearing , Gauge Protection

Name: 6 18quot FA537G TCI Tricone Bit Rock Bit Rubber Sealed Journal Bearing Gauge Protection
Brand: FLRT
Price: 1 USD

Brand Name : FLRT

Model Number : 6 1/8 FA537G

Certification : API-7-1 , ISO 9001:2008

Place of Origin : China

MOQ : 25pcs

Supply Ability : 200pcs per quarter

Delivery Time : 5~45 workdays

Packaging Details : plywood box / iron box

Bearing Type : Sealed Journal Bearing With Gauge Protection

Cutting Material : TCI

Standard : API-7-1, ISO 9001:2008

Series : FA

Application 1 : Oil well drilling

Application 2 : Gas well drilling

Application 3 : Geothermal well drilling

Contact Now

6 1/8" FA537G , TCI Tricone Bit , Rock Bit , Rubber Sealed Journal Bearing , Gauge Protection

PRODUCT SPECIFICATIONGS

Bit Size: 6 1/8 inch( 155.6 mm)

IADC: 5 3 7

SERIES: FA

Tooth type: (TCI)Tungsten Carbide Insert

Connection 6 5/8inch API REG PIN

Nozzle Three jet(side) nozzles,

Bit Weight: 13kgs

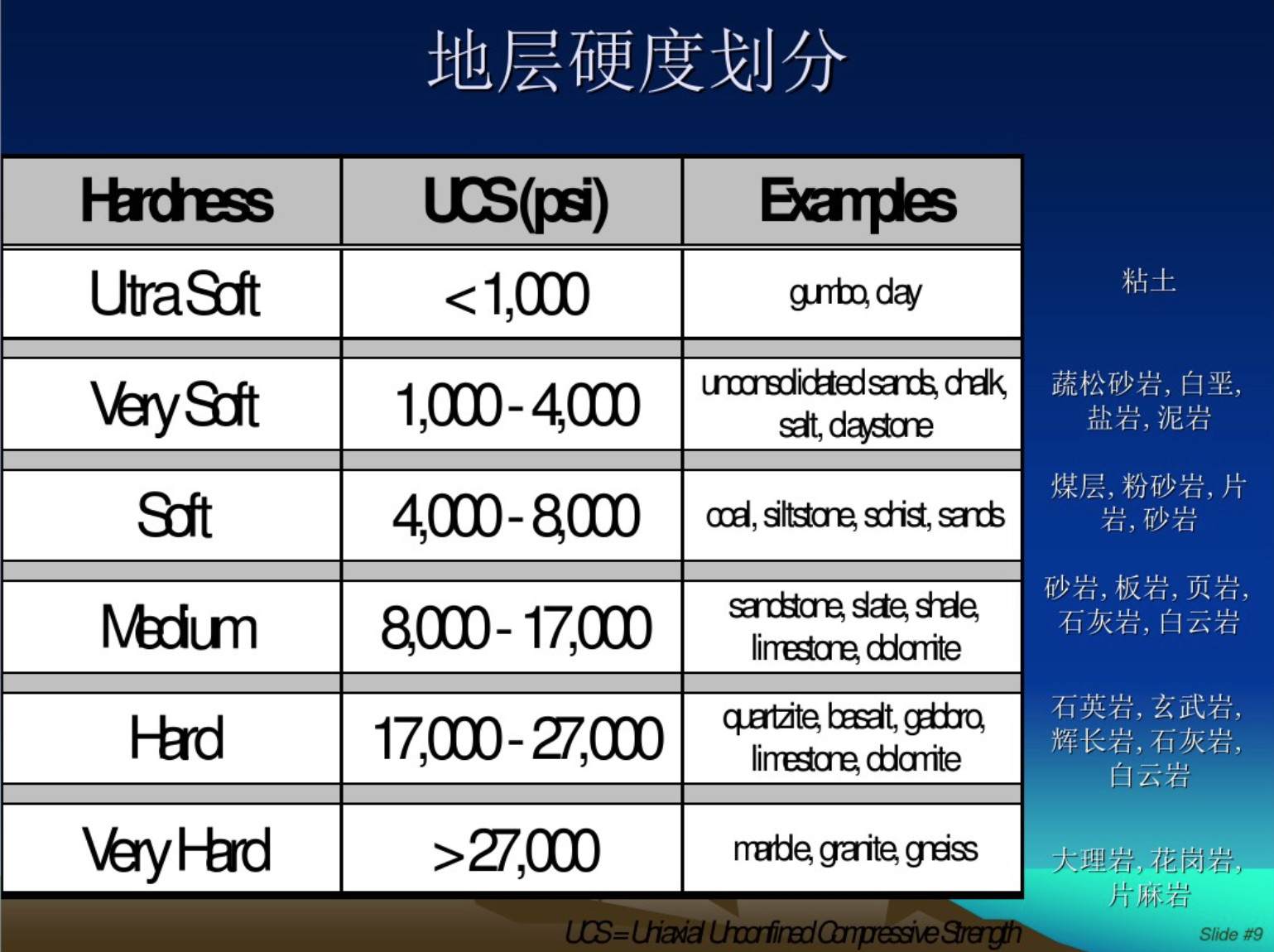

RECOMMENDED ROCK FORMATIONS

Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)

6 1/8" FA537G , TCI Tricone Bit , Rock Bit , Rubber Sealed Journal Bearing , Gauge Protection

SIZE AVAILABLE

Form 7 7/8inch to 17 1/2inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code		117	127	437 447	517 527	537 547	617 627	637
WOB	KN/mm(Bit Dia.)	0.35~0.8	0.35~0.9	0.35~0.9	0.35~1.0	0.45~0.95	0.45~1.1	0.5~1.1
WOB	Lb/in. (Bit Dia.)	2000~4271	2000~5142	2000~5142	2000~5714	2571~5714	2571~6285	2857~6285
Rotation Speed (Rpm)		240~80	240~70	180~80	220~60	220~50	200~50	180~40

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
